Mast Boom connection

[mrnoorlander]

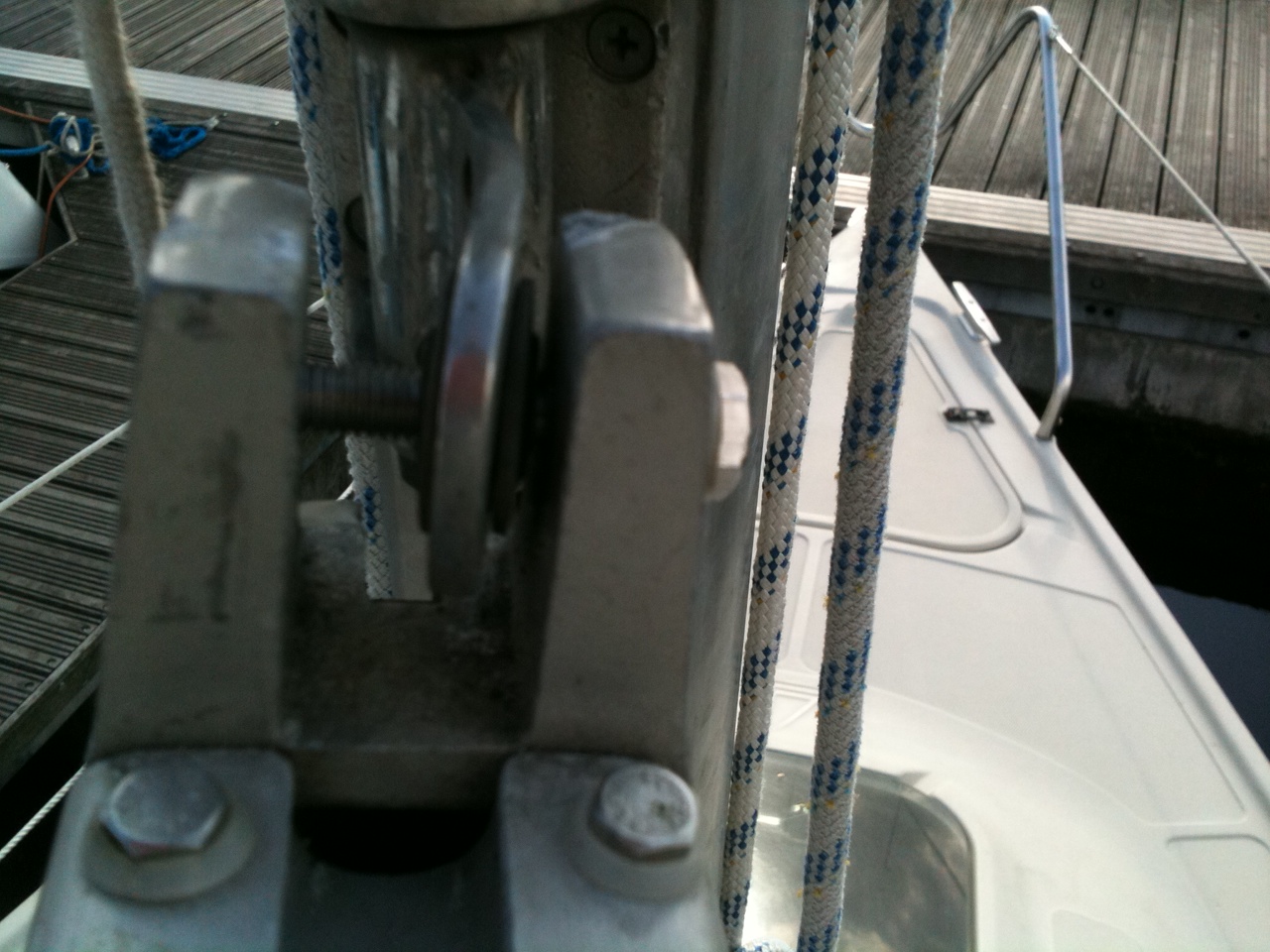

What do you guys think of my mast - boom connection?
Is this as it should be?

Thank you

Kind regards
Michael

[Uli]

Hello Mr. Noorlander,
no..... it`s wrong.

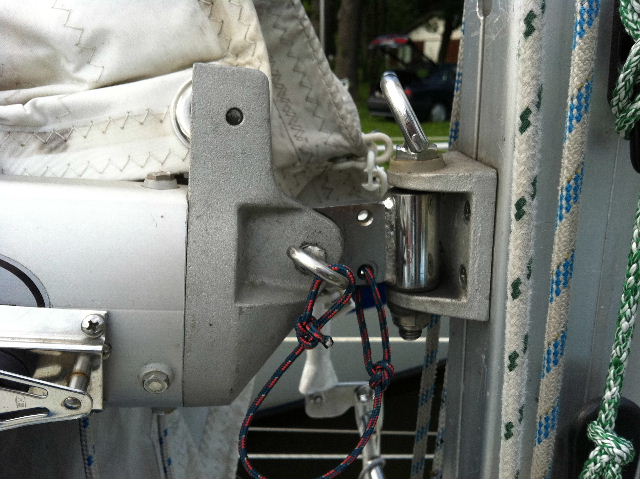

Here are 2 pictures of the right way how to fix it.

Yours sincerely

Uli

[mrnoorlander]

Thank you Uli - appreciated

[Detlev]

Hello Michael,

these are some Fotos from my DY25.

Goodewind Ahoi!

Detlev

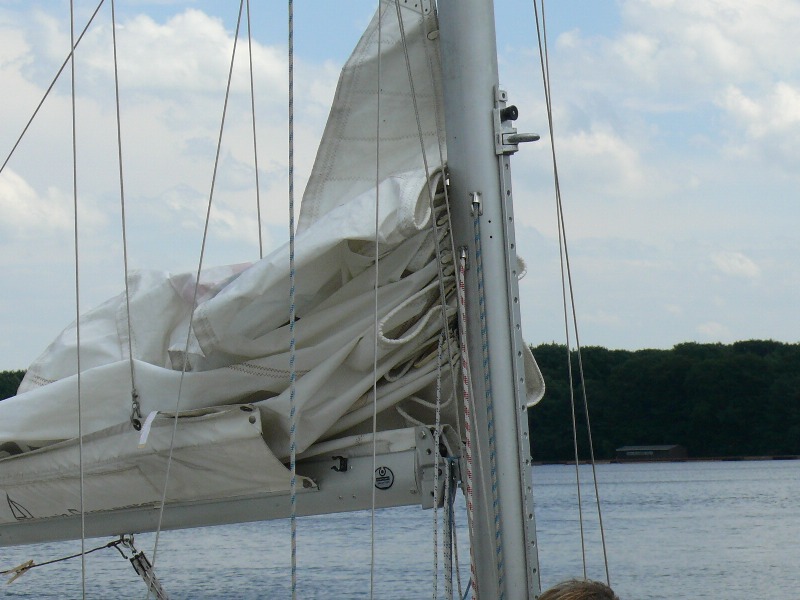

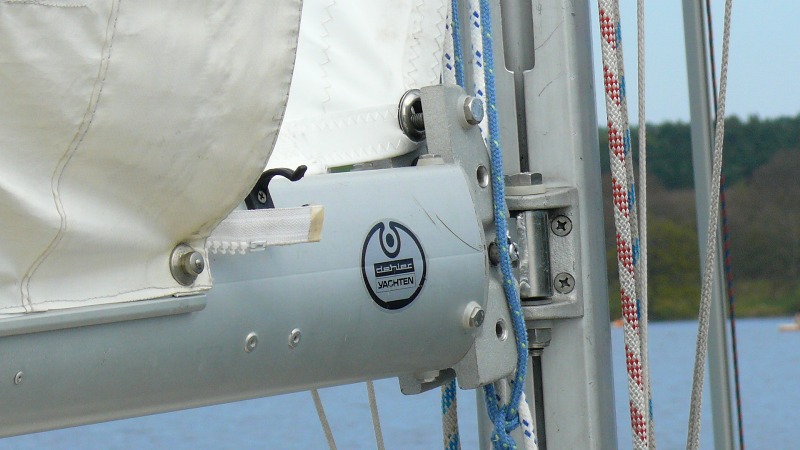

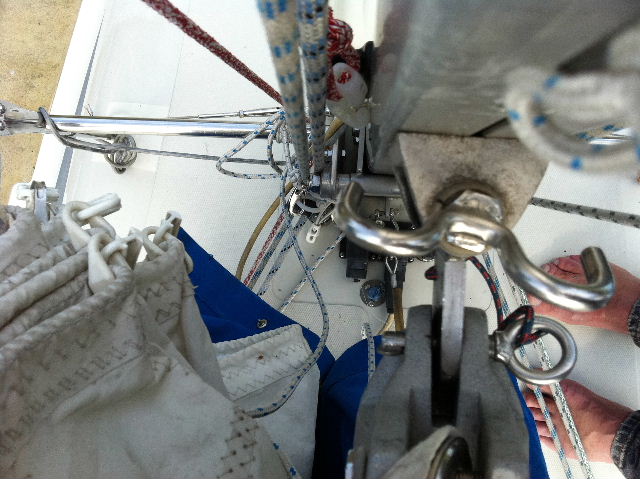

DY25 - Baumbeschlag - 1


DY25 - Baumbeschlag - 2


DY25 - Baumbeschlag - 3


DY25 - Baumbeschlag - 4


[mrnoorlander]

Thank you - excellent photo's
I'll be sorting it tomorrow!

Michael

[mrnoorlander]

Hello

The mail sail went up correctly - hoora!

Now 2 problems left for the main sail and reefing:

- Main sail:

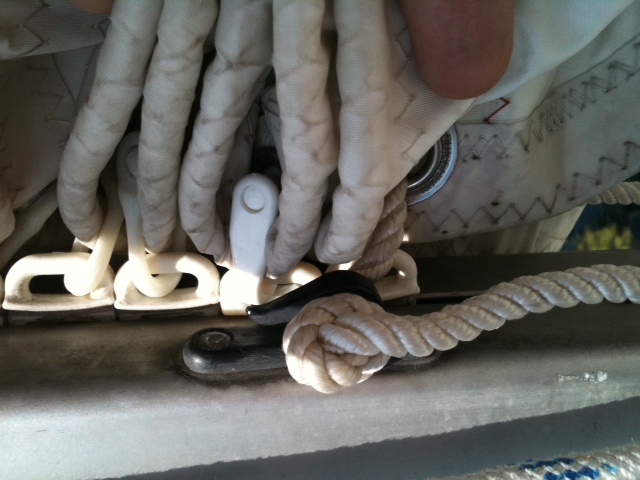

In order to stop the main sail falling our once the sail is down I think I need to have as rope as on foto below. Is this correct or is there an other method for this?


- Reefing:
My main sail has "van der Stadt" reefing, the manual is quite clear about this. However, I cannot work out how the reefing line goes from the sail to the mast. The Eye (in the sail) closest to the mast goes on the bulls horn, however, the rope should also be connected in this eye. But where does it go? Does just have a knot to stop it coming out of the eye or .... ?

Thanks

Regards
Michael
